6. Understanding How Natural Vacuum Leak Detection Works

Explanation

Understanding How Natural Vacuum Leak Detection Works:

Imagine you have a water bottle with a tiny hole in it, but you can't see the hole. How do you know if water is leaking out? That's where the Natural Vacuum Leak Detection system comes in, but let's break it down

Understanding How Natural Vacuum Leak Detection Works:

1.) What's a Vacuum? Think of a vacuum as a super-duper empty space. It's like when you suck all the air out of a bag, and it becomes flat. Your car's engine has a special space called a vacuum, too, and it's important for making the engine run smoothly.

2. Why It Matters? Your car's engine needs to know if there are any sneaky leaks (like the hole in your water bottle) in its vacuum system. If there's a leak, it can make the engine work poorly and pollute more.

3. Natural Vacuum Leak Detection Just like how you can feel the air coming out of the tiny hole in your water bottle, the car's computer can feel if there's a leak in the vacuum. It does this by checking the pressure in the vacuum.

4. What Happens Next? If the computer senses a leak, it'll tell you by turning on a warning light on your dashboard. It's like your car telling you, "Hey, there's a problem here! Get it fixed."

5. Fixing the Leak Once you know there's a leak, you or a mechanic can find it and patch it up, just like putting a band-aid on your water bottle. This helps your car run better and be kinder to the environment.

So, the Natural Vacuum Leak Detection system checks for leaks and helps you keep your car running smoothly. It's all about making sure your car stays in tip-top shape!

Understanding How Natural Vacuum Leak Detection Works

Natural Vacuum Leak Detection Explained

Sure, let's explain the Ideal Gas Law and its connection to Natural Vacuum Leak Detection in a simple way.

Ideal Gas Law: What Is It? Imagine you have a bunch of tiny invisible particles bouncing around inside a balloon. These particles could be air molecules. The Ideal Gas Law is like a set of rules that tell us how these particles behave when we change things like pressure, volume, and temperature.

Now, let's connect this to Natural Vacuum Leak Detection:

Natural Vacuum Leak Detection and the Ideal Gas Law:

1. Particles in Your Car: In your car's engine, there's a special space called a vacuum. This space is filled with air molecules, just like the particles in the balloon.
2. Pressure Check: The Natural Vacuum Leak Detection system keeps an eye on the pressure inside this vacuum. If there's a leak in the vacuum system, it can affect the pressure.
3. Ideal Gas Law at Play: The Ideal Gas Law helps us understand how the pressure of those air molecules in the vacuum changes when there's a leak. It tells us that if you have fewer air molecules (due to a leak), the pressure will drop.
4. Detecting the Leak: The Natural Vacuum Leak Detection system is like a detective. It uses the Ideal Gas Law to figure out if there's a leak by checking if the pressure in the vacuum is lower than it should be.
5. Warning Alert: If the pressure is too low, the car's computer thinks, "Hmm, something's not right," and it turns on a warning light on your dashboard. This is like your car's way of saying, "Hey, there might be a leak, so get it checked!"

So, the Ideal Gas Law helps the Natural Vacuum Leak Detection system figure out if there's a leak by looking at how the pressure changes. It's like using science to keep your car healthy and safe on the road!

Chrysler NVLD Operation

Understanding How Natural Vacuum Leak Detection Works:

Chrysler's Natural Vacuum Leak Detection (NVLD) system is a technology used in some Chrysler vehicles to detect leaks in the vehicle's fuel vapor system. Let's break down how the Chrysler NVLD system operates in simple terms:

1. What is the Fuel Vapor System? Inside your car, there's a special system that collects and stores the fumes that come from the fuel tank. These fumes are called fuel vapor. They need to be controlled so they don't escape into the air and pollute it.

2. Why is the NVLD System Important? The NVLD system is like a guardian for the fuel vapor system. It makes sure that no harmful fumes are escaping from the fuel tank or other parts of the system. It's all about keeping the air clean and safe.

3. How Does NVLD Work? The NVLD system uses a small sensor and some hoses to do its job. Here's how it works:

• The sensor checks the pressure inside the fuel vapor system. If everything is sealed properly, the pressure should stay steady.
• If there's a tiny leak in the system, like a loose cap on the fuel tank or a cracked hose, the NVLD system can detect it. It notices that the pressure is dropping because some of the fuel vapor is escaping.
• When it detects a leak, it tells your car's computer, and your car may turn on a warning light on the dashboard. This light is like a signal that says, "Hey, there's a problem with the fuel vapor system. Check it out!"

4. Fixing the Leak Once you or a mechanic know there's a leak, you can find and fix it. It's important to fix these leaks because they can harm the environment and waste fuel.

So, in a nutshell, the Chrysler NVLD system is like a detective that keeps an eye on the fuel vapor system in your car. If it senses even a tiny leak, it tells your car's computer, and you get a warning. This way, you can keep your car's emissions low and help protect the environment.

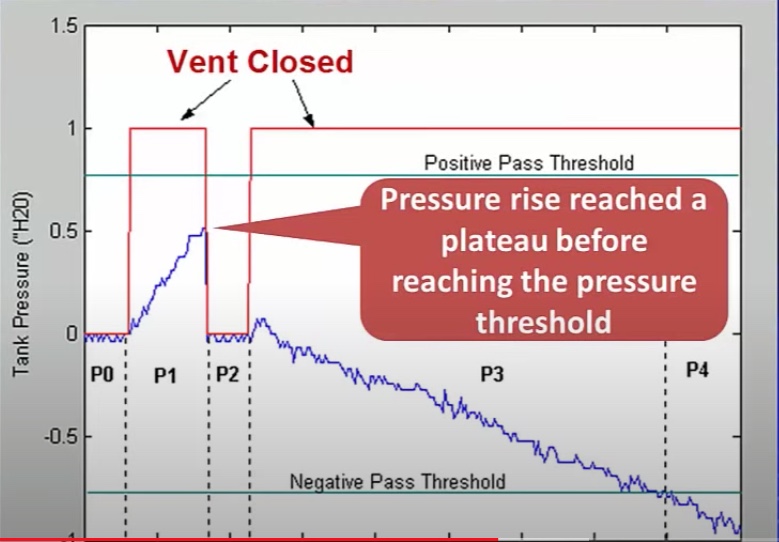

Engine Off Natural Vacuum Diagnostics (EONVLD)

What is EONVLD?

EONVLD is like a doctor's checkup for your car's fuel system, but it happens when the engine is turned off.

How Does It Work?

1. When your car is off, the fuel tank is sealed, but there can still be some pressure inside.
2. EONVLD checks this pressure using a special sensor.
3. If the pressure drops, it means there might be a leak in the fuel system.

Diagnostic Method:

• EONVLD runs a test when you turn off your car.
• It measures pressure in the fuel system.
• If the pressure drops, it tells your car's computer.

Why Is It Important?

• Helps find fuel leaks when the car is not running.
• Prevents harmful fumes from escaping.
• Saves fuel and protects the environment.

SUMMARY

• EONVLD checks fuel system pressure when the engine is off.
• It detects leaks and tells your car's computer.
• Important for safety, fuel efficiency, and the environment.
